MODA Ice Maker Outlet Box w/ Hammer Arrestor, F1807 PEX (Brass), Standard
OATEY 37689 MODA- IMOB- 1/4 TURN- BR- F1807- HAM- STD PK
Ice Maker Fittings
}
MODA Ice Maker Outlet Box w/ Hammer Arrestor, F1807 PEX (Brass), Standard
3451350
MFG #: 37689
Product ID:3451350
Famous Supply
- Series: MODA
- Type: Ice Maker Outlet Box

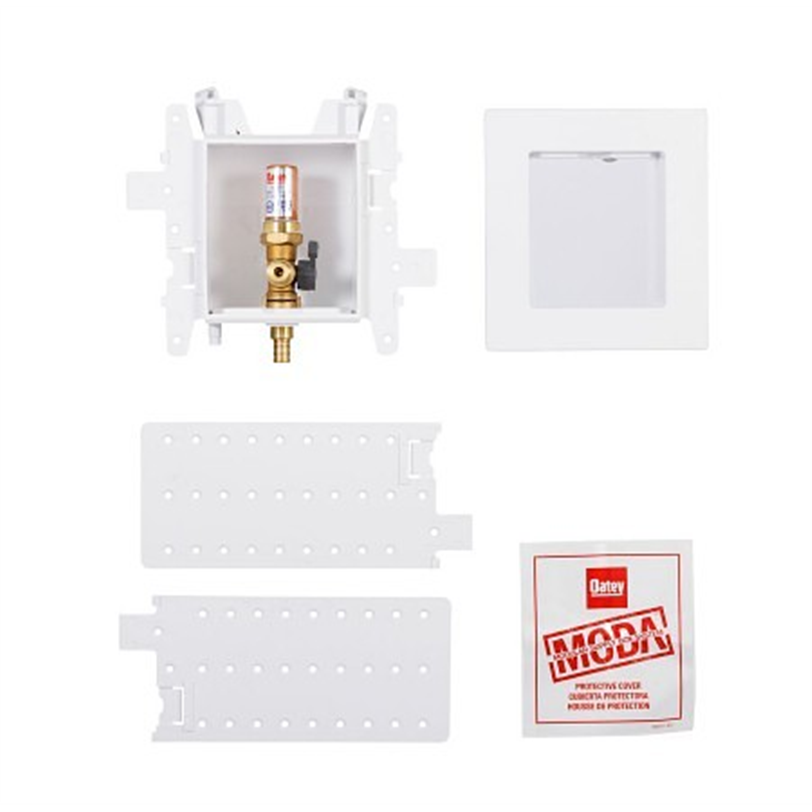

Oatey MODA™ ice maker supply boxes shall be used in residential or commercial applications requiring a supply valve recessed in the wall. The MODA™ ice maker box assembly contains a 1/4" OD compression valve pre-installed in a PVC box, with inter-locking wing flanges on each side. The wing flanges shall allow installation on a single stud, or between two studs using the included side brackets. No additional components
shall be required for a between stud installation. Valves shall be a twopiece design, permitting field replacement, and shall be secured with a
stainless steel retention clip
- Features
| Infinite configuration options for easy, flexible installation |
| Connects to PEX-B/F1807 supply line with crimp connection |
| Two-piece valve design for easy repair or replacement without damaging drywall |
| Advanced snap-lock design allows for easy assembly/disassembly and connection to another MODA box |
| Contains (1) 1/4 in. outer diameter compression valve pre-installed in a PVC box with interlocking wing flanges that accommodate on-stud and straddle-stud installation |
| Separate valve and drain boxes allow paired or split boxes between walls or stud bays to prevent supply/drain crossovers; valves rated to 150 PSI air and 250 PSI water |
| Durable PVC box construction stands up to the roughest jobsite conditions |
| Universal faceplate and brackets compatible with all MODA boxes |
| Box dimensions: 8 in. W x 4.85 in. H x 3.38 in. D; box opening dimensions: 3.82 in. W x 4.367 in. H |
| Faceplate dimensions: 6 in. W x 6.45 in. H |
| Includes (1) Oatey® Quiet Pipes® hammer arrestor to reduce noise and protect pipes |
