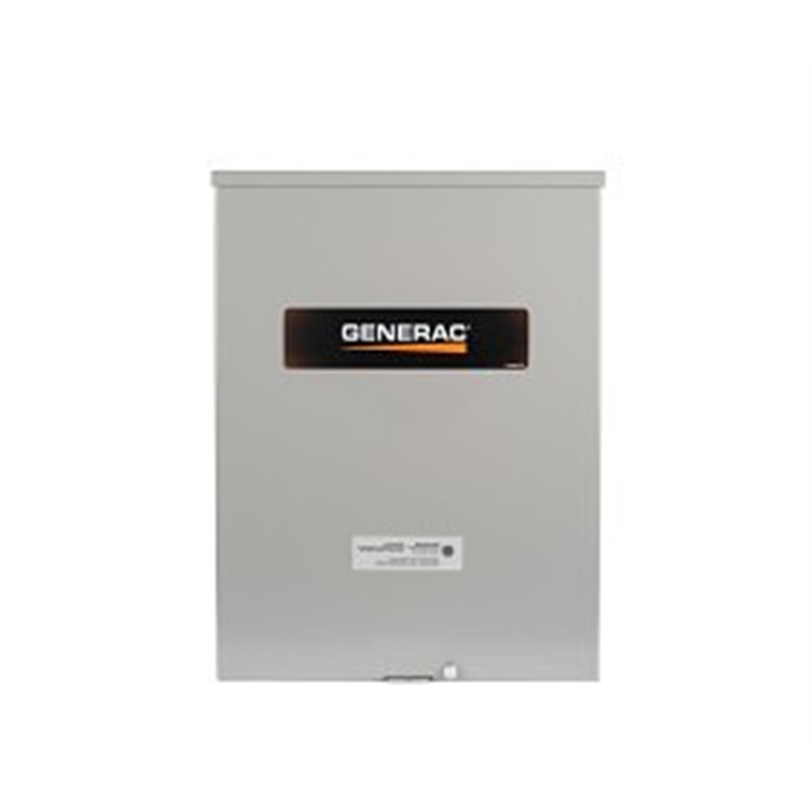

100A Automatic Transfer Switch w/ Integrated Surge Protection, Service Entrance Rated, 120/240v, 1 ph, NEMA 3R

GENERAC RXSW100A3SPD 100 AMP SERVICE ENTRANCE RATED AUTOMATIC TRANSFER SWITCH 120/240 1PHASE NEMA 3R WITH INTERGRATED SURGE PROTECTION

Automatic Transfer Switches
Brand: Generac logo
}

100A Automatic Transfer Switch w/ Integrated Surge Protection, Service Entrance Rated, 120/240v, 1 ph, NEMA 3R

3632267 MFG #: RXSW100A3SPD Product ID:3632267
Famous Supply
  • Depth: 7 in
  • Finish: Powder Coated
  • Height: 20 in
  • Material: Aluminum
  • Series: RXSW
  • Type: Automatic
  • Width: 14-1/2 in
  • Voltage Rating: 120/240
  • Amperage Rating: 100
  • Number of Phases: 1
  • Enclosure Type: NEMA 3R
This new series of Generac Automatic Transfer Switches is designed for use with single phase generators that utilize an Evolution™ or Power Zone™ 200 Controller. The 100, 150, and 200 Amp open transfer switches are available in single phase, service equipment rated configurations. This series include Generac’s whole-house surge protection device (SPD), which is built into the transfer switch. Generac’s integrated whole-house SPD helps protect against damaging surges and transients by blocking them from entering homes or businesses. The SPD has thermally protected metal oxide varistors (MOVs), which help reduce risk of thermal damage. This new series of transfer switch includes a fast mount hanging system to simplify and expedite installations.
  • Features
  • Warranty
  • Standards & Approvals
  • Includes
  • Application
Housed in an aluminum NEMA Type 3R enclosure with electrostatically applied and baked powder paint.
The Heavy Duty Generac Contactor is an ETL recognized device, designed for years of service.
The generator controller handles all timing, sensing, exercising functions, and transfer commands.
5 Years
UL1449 4th Edition Listed Device
Surge Protection
This new series of Generac Automatic Transfer Switches is designed for use with single phase generators that utilize an Evolution™ or Power Zone™ 200 Controller.
